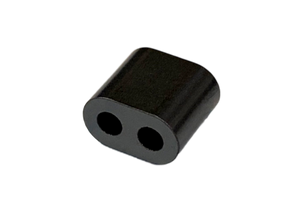

BN-43-2402 Binocular (Multi-Hole) Ferrite Core
Physical Dimensions A=0.276 in / 7.0 mm +/- 0.25 mm B=0.244 in / 6.2 mm +/- 0.25 mm C=0.16 in / 4.2 mm +/- 0.25 mm E=0.114 in / 2.9 mm +/- 0.1 mm H=0.071 in / 1.7 mm +/- 0.2 mm |
| AL=1440 +/- 20 % uH=(AL*Turns2)/1000 |
| Temperature Stability (ppm /°C) = 12500 |
| Color Code = shiny black |
| Application Freq Range Wideband Transformers 5 - 400 MHz Power Transformers 0.5 - 30 MHz RFI Suppression 5 - 500 MHz |
