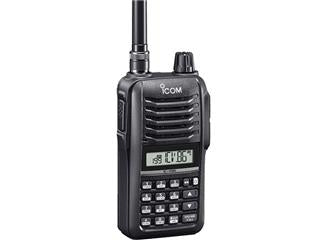

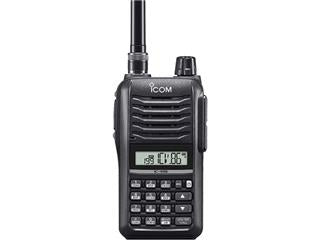

The IC-V86 gives you more audio, more RF power, more coverage and more battery capacity in a compact, MIL-STD portable. With 1.5W of receive audio power and a new chassis design, the IC-V86 enables users to hear incoming signals in loud, noisy environments. The IC-V86 expands users radios coverage with 7W of RF output power and the new 2250mAh Li-Ion battery pack provides longer operational capabilities.
Output Power:
|
|
7.0/5.5/2.5/0.5 Watts |
RX Frequencies:
|
|
136-174 MHz |
Channels:
|
|
207 (200 regular, 6 scan edges, 1 call) |
Waterproof Rating:
|
|
IP54 |
Rugged Construction
The IC-V86 tested to and passed MIL-STD-810 C, D, E, F & G environmental tests.
| Standard |
MIL 810G |
| Low Pressure |
500.5 |
I, II |
| High Temp. |
501.5 |
I, II |
| Low Temp. |
502.5 |
I, II |
| Temp. Shock |
503.5 |
I-C |
| Solar Radiation |
505.5 |
I |
| Rain Blowing/Drip |
506.5 |
I, III |
| Humidity |
507.5 |
II |
| Salt Fog |
509.5 |
– |
| Dust Blowing |
510.5 |
I |
| Vibration |
514.6 |
I |
| Shock |
516.6 |
I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
| Ingress Protection Standard |
| Dust & Water |
IP67 (Dust-tight and waterproof protection) |
Features Include:
- Selectable volume level, VFO/memory channel selection control
- Integrated VOX function
- Built-in CTCSS/DTCS encoder/decoder and tone scan
